avernos
Avernos was one of the reverse engineering (RE) challenges from the recent bi0s CTF. It was solved by 18 teams and was worth 838 points. I managed to solve it during the CTF, although I struggled with part of the task. The solution I came up with might be interesting to document - so let’s start.
The description reads:
An ancient engine stirs in the dark. It speaks no language you know.
Flag Format: bi0s{…}
We’re given an attachment: avernos.exe. Running the file command on the binary reveals that it’s a .NET executable:
❯ file avernos.exe
avernos.exe: PE32+ executable (console) x86-64 Mono/.Net assembly, for MS Windows
So this should be an easy one, right? Before jumping into the analysis we can give it a quick spin. When executed, it does not print anything and awaits user input.
Initial analysis - .NET part
Since it is a .NET binary we start by opening it in dnSpy. We can already tell that it might not be your typical Sunday .NET reversing exercise.
The list of methods looks strange, and some of them are marked as extern. Looks like definitely some shenanigans are happening here.

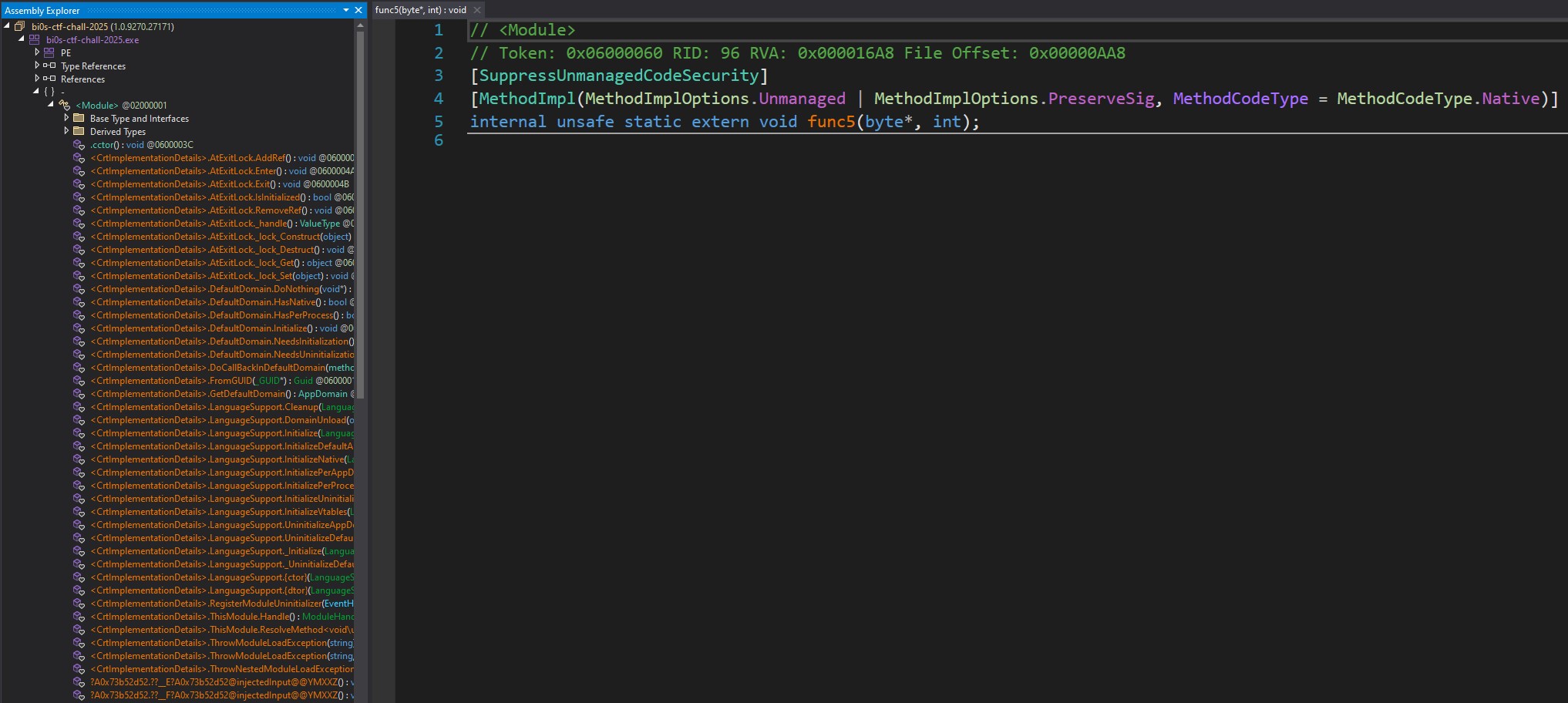

dnSpy methods list look suspicious
Looking around in dnSpy, we can identify a few interesting spots:
func6 appears to contain the main logic of the binary, with the following code:
internal unsafe static void func6()
{
string text = Console.ReadLine();
Regex regex = new Regex("^bi0s{([a-zA-Z0-9_]+)}$");
Match match = regex.Match(text);
if (match.Success)
{
string value = match.Groups[1].Value;
<Module>.func11();
IntPtr intPtr = Marshal.StringToHGlobalAnsi(value);
<Module>.strcpy_s((sbyte*)(&<Module>.user_input), 0x80UL, (sbyte*)intPtr.ToPointer());
Marshal.FreeHGlobal(intPtr);
<Module>.func8((sbyte*)(&<Module>.user_input));
<Module>.func1();
}
else
{
Environment.Exit(1);
}
}
From that we can spot what the expected flag format is and that we only pass what’s inside {} to be verified. We knew that from the description but now we know what characters are expected inside {}. And if we match the regex check we execute func11, func8 and func1 and doing some manual memory management in between.
func8 and func1 code is available, but func11 is marked as external. We’ll focus on the first two for now:
func8
internal unsafe static void func8(sbyte* input)
{
<Module>.msclr.gcroot<System::String\u0020^>.=(&<Module>.?A0x73b52d52.injectedInput, new string((sbyte*)input));
<Module>.?A0x73b52d52.injectedIndex = 0;
}
It looks like what the code does here is setting the injectedInput to be equal to the string passed as input. We are also setting injectedIndex to 0.
This is probably setting some data for the real fun.
func1
internal unsafe static void func1()
{
if (<Module>.global_flag != 1)
{
Environment.Exit(1);
}
<Module>.func27();
<Module>.func5((byte*)(&<Module>.embedded_instructions), 0x1ED1);
<Module>.func23();
int num = <Module>.func18();
if (*((ref <Module>._err_token) + 0x52 + (long)num) == 0)
{
<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7> <lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>;
initblk(ref <lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>, 0, 1L);
_err_tok_2<7,0> err_tok_2<7,0>;
<Module>.printf(<Module>._err_tok_2<7,0>.decrypt(<Module>.func1.<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>.()((<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>*)(&<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>), &err_tok_2<7,0>)), __arglist());
<Module>.exit(0);
}
<lambda_80864a03a1c3fa5fa295ad64a1df9c07> <lambda_80864a03a1c3fa5fa295ad64a1df9c07>;
initblk(ref <lambda_80864a03a1c3fa5fa295ad64a1df9c07>, 0, 1L);
_err_tok_2<9,0> err_tok_2<9,0>;
<Module>.printf(<Module>._err_tok_2<9,0>.decrypt(<Module>.func1.<lambda_80864a03a1c3fa5fa295ad64a1df9c07>.()((<lambda_80864a03a1c3fa5fa295ad64a1df9c07>*)(&<lambda_80864a03a1c3fa5fa295ad64a1df9c07>), &err_tok_2<9,0>)), __arglist());
}
This one is a bit longer. Without diving into all the code details, here’s a summary:
func27decrypts data stored inembedded_instructions, which is then passed to an externalfunc5. Once that returns, control flows to another external function -func23.func18performs some obscure number operations, but ultimately returns0xED.
Next, we encounter a conditional branch, but both branches perform similar calls - including one to printf. The difference lies in the argument passed to printf, which is generated via a call to a decrypt function, each with a different lambda.
If we look at the lambdas and the decrypt function:
internal unsafe static _err_tok_2<7,0>* func1.<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>.()(<lambda_7b8f7c1aa6b0ebbbec3baa92a10e10b7>* A_0, _err_tok_2<7,0>* A_1)
{
_err_tok_2<7,0> err_tok_2<7,0> = 0xEF;
*((ref err_tok_2<7,0>) + 1) = 0xEA;
*((ref err_tok_2<7,0>) + 2) = 0x7D;
// ...more bytes for the next indices
*((ref err_tok_2<7,0>) + 0xC) = 0x5C;
*((ref err_tok_2<7,0>) + 0xD) = 0xD9;
cpblk(A_1, ref err_tok_2<7,0>, 0xE);
return A_1;
}
internal unsafe static _err_tok_2<9,0>* func1.<lambda_80864a03a1c3fa5fa295ad64a1df9c07>.()(<lambda_80864a03a1c3fa5fa295ad64a1df9c07>* A_0, _err_tok_2<9,0>* A_1)
{
_err_tok_2<9,0> err_tok_2<9,0> = 0xEF;
*((ref err_tok_2<9,0>) + 1) = 0xEA;
*((ref err_tok_2<9,0>) + 2) = 0x7D;
// ...more bytes for the next indices
*((ref err_tok_2<9,0>) + 0x10) = 0xD6;
*((ref err_tok_2<9,0>) + 0x11) = 0x37;
cpblk(A_1, ref err_tok_2<9,0>, 0x12);
return A_1;
}
internal unsafe static sbyte* _err_tok_2<9,0>.decrypt(_err_tok_2<9,0>* A_0)
{
for (ulong num = 0UL; num < 8UL; num += 1UL)
{
ref byte ptr = ref *(byte*)(A_0 + 9L / (long)sizeof(_err_tok_2<9,0>) + num / (ulong)sizeof(_err_tok_2<9,0>));
byte* ptr2 = A_0 + num / (ulong)sizeof(_err_tok_2<9,0>);
sbyte b = (sbyte)(ptr ^ (*ptr2 & byte.MaxValue));
*(byte*)(A_0 + 9L / (long)sizeof(_err_tok_2<9,0>) + num / (ulong)sizeof(_err_tok_2<9,0>)) = (byte)b;
}
*(byte*)(A_0 + 9L / (long)sizeof(_err_tok_2<9,0>) + 8L / (long)sizeof(_err_tok_2<9,0>)) = 0;
return A_0 + 9L / (long)sizeof(_err_tok_2<9,0>);
}
internal unsafe static sbyte* _err_tok_2<7,0>.decrypt(_err_tok_2<7,0>* A_0)
{
// Same code as `_err_tok_2<9,0>.decrypt`, just iterating over a shorter range of 7 characters
}
It looks cryptic at first, but upon closer inspection, it’s just a simple xor between parts of the data from the lambdas. One half is the key, the other the data - or vice-versa, since xor is symmetric.
A quick Python script reveals the output:
a = [0xef, 0xea, 0x7d, 0xb0, 0x93, 0x56, 0xd9, 0xdc, 0x37, 0xac, 0x85, 0x0f, 0xc2, 0xf6, 0x35, 0xad, 0xd6, 0x37]
''.join([chr(a[i] ^ a[i+9]) for i in range(len(a)//2)])
'Correct\n\x00'
And for the other lambda, the result is ‘Wrong\n\x00’.
So we’ve identified a flag check mechanism that selects between “Correct” and “Wrong” based on the decrypted result.
Enough of the .NET side - let’s go native now.
Initial analysis - Native part
During the analysis of the of the .NET part, there were functions that were missing implementation. They have to be somewhere. Lets open the binary in Ghidra.
In the native part we can locate the missing functions: func5 and func23. The first one does some initialization and the second one eventually calls to FUNC_140001eac which looks like some VM instruction dispatch routine :(
// ... cut for brevity
else if (bVar3 == 0x3b) {
uVar15 = FUN_1400010b0(param_1, bVar1);
FUN_140001230(param_1, bVar1, (uVar15 & 0xff) >> (bVar2 & 0x1f));
}
else if (bVar3 == 0x46) {
uVar15 = FUN_1400010b0(param_1, bVar1);
uVar18 = FUN_1400010b0(param_1, bVar1);
FUN_140001230(param_1, bVar1,
(uVar15 & 0xff) << (bVar2 & 0x1f) |
(uVar18 & 0xff) >> (0x8 - bVar2 & 0x1f));
}
else if (bVar3 == 0x47) {
uVar15 = FUN_1400010b0(param_1, bVar1);
uVar18 = FUN_1400010b0(param_1, bVar1);
FUN_140001230(param_1, bVar1,
(uVar15 & 0xff) >> (bVar2 & 0x1f) |
(uVar18 & 0xff) << (0x8 - bVar2 & 0x1f));
}
else if (bVar3 == 0x5a) {
uVar15 = FUN_1400010b0(param_1, bVar2);
FUN_140001230(param_1, bVar1, uVar15);
}
}
else if (bVar3 == 0x5c) {
uVar15 = FUN_1400010b0(param_1, bVar2);
FUN_140001470(param_1, bVar1, uVar15);
}
else if (bVar3 == 0x5d) {
uVar4 = FUN_1400013b0(param_1, bVar2);
FUN_140001470(param_1, bVar1, uVar4);
}
// ... cut for brevity
This function is extremely long and contains a lot of branches handling specific opcodes. Without analyzing it in full, we can already see that param1 (rcx) holds some kind of VM state - register values and memory - so we’ll need to keep an eye on that.
Let’s go dynamic
During the CTF, I knew this would be difficult to solve purely through static analysis, so I decided to run the binary under x64dbg. The first run wasn’t particularly promising, as the binary exited quickly after launching it under the debugger.
Hmm. There was no indications of any anti-debugging techniques during our earlier inspection, but maybe something was missed. Could it be that the binary only performs this check right at the start? Since it waits for user input (we could see that from the initial run, and also from the Console.ReadLine() in the .NET part), maybe we can attach the debugger after it gets going?
Bingo. The binary didn’t terminate when the debugger was attached after startup. We’re good to proceed with dynamic analysis now.
Starting with a breakpoint at FUN_140001eac, we can enter an initial flag like bi0s{abcdefghijklmnopqrstuvwxyz} to get our first peek into the running program.

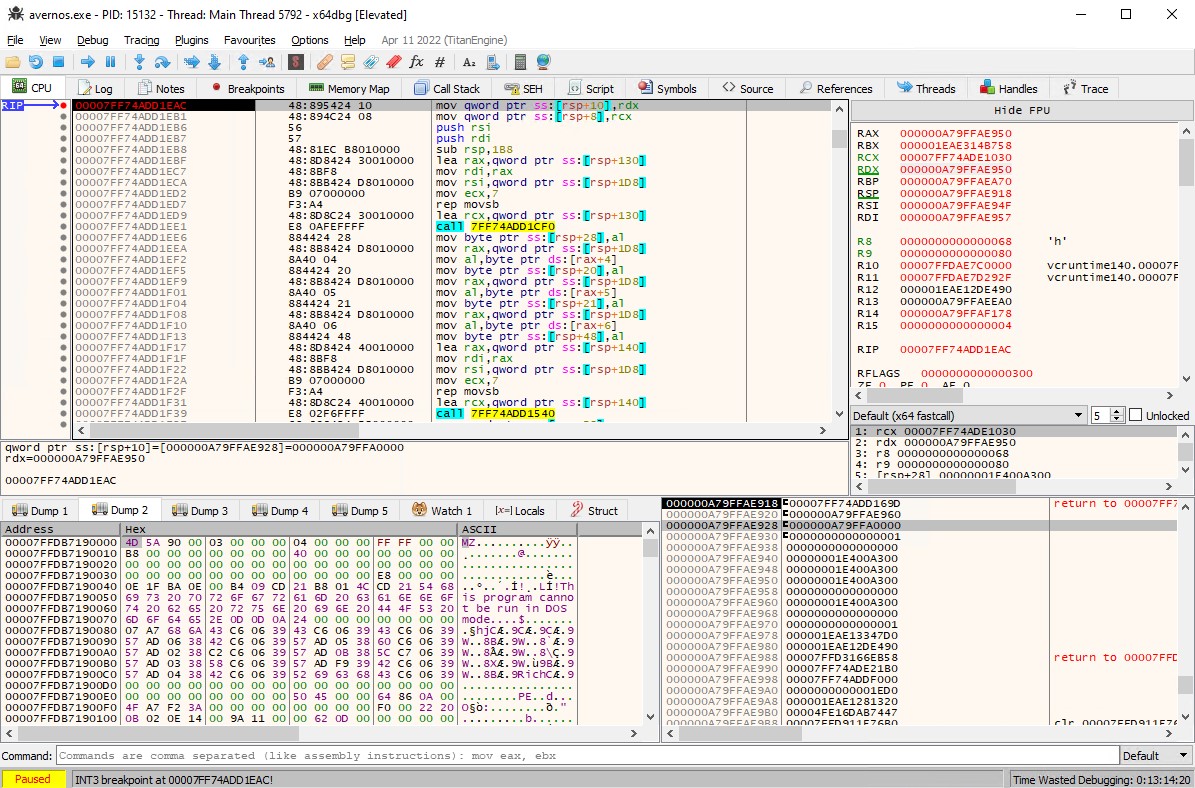

First peak into the opcode dispatch function
The line that starts dispatching the opcode handlers is: 140001f4f CMP dword ptr [RSP + local_1a4], 0xa0. So it’s a good idea to set another breakpoint there and start observing the VM memory. At that point, the VM state pointer is available in rcx, via: MOV rcx, [RSP + 0x1D0].
Getting the flag
Running the binary couple of times and observing the VM memory we can for sure detect some values that stand out from the rest. An interesting points in the disassembly were 0x91 and 0x92 opcodes.
It’s code was as simple for both of them:
else if (opcode == 0x91) {
uVar1 = func3();
set_value(vm,r1,uVar1);
}
else if (opcode == 0x92) {
get_value(vm,r1);
func4();
}
but the implementation for func3() and func4() was missing. Checking managed part of the code, reviles that the first one, though a bit cryptic, gets a character from a string in the end. The latter one just prints a value using Console.Write.
internal unsafe static int func3()
{
string text = <Module>.msclr.gcroot<System::String\u0020^>..PE$AAVString@System@@((msclr.gcroot<System::String\u0020^>*)(&<Module>.?A0x73b52d52.injectedInput));
if (text == null || <Module>.?A0x73b52d52.injectedIndex >= text.Length)
{
<Module>.msclr.gcroot<System::String\u0020^>.=(&<Module>.?A0x73b52d52.injectedInput, Console.ReadLine());
if (string.IsNullOrEmpty(<Module>.msclr.gcroot<System::String\u0020^>..PE$AAVString@System@@((msclr.gcroot<System::String\u0020^>*)(&<Module>.?A0x73b52d52.injectedInput))))
{
return 0;
}
<Module>.?A0x73b52d52.injectedIndex = 0;
text = <Module>.msclr.gcroot<System::String\u0020^>..PE$AAVString@System@@((msclr.gcroot<System::String\u0020^>*)(&<Module>.?A0x73b52d52.injectedInput));
}
int num = <Module>.?A0x73b52d52.injectedIndex;
<Module>.?A0x73b52d52.injectedIndex++;
return text[num];
}
internal static void func4(int val)
{
Console.Write((char)val);
}
The first one looks like an excellent point to continue our investigation. Let’s put a breakpoint on the opcode and continue execution.
Running couple of times through this breakpoint shows that it does in fact return consecutive characters from our flag input. We even get, what looks like be the part of the flag for free. When getting the letter y from our input, in the VM memory part we can see something that might be part of the flag. We don’t know that for sure, but the characters looks too suspicious to be missed.
l33t sp33k text looks too suspicious to be skipped
So from now on, it will be incorporated into the flag input: bi0s{abcdefghijklmnopqrstuvwxde_s7uff}. Now we only need the remaining 24 characters.
Apart from, what seems to be the last part of the flag, when observing the VM memory we can spot that the flag is processed in patterns. First characters are processed in a different way than the rest. Starting from the letter i, there’s some string being constructed ijklm.... To see where it’s being referenced we can place a hardware breakpoint on the first 4 bytes.
When the breakpoint get hit, we can notice the two things. First, the full string is 8 characters long (till p) and secondly we are located in the handler for the 0x5c opcode, which seems to be “just” copying the data at the same index just +0x52 bytes further from the original location. Not to loose track we can put a hardware breakpoint on access also.
That didn’t yield anything useful but some interesting strings showed up in the VM memory: d\2YqZm~, qZm~d\2Y and vjmfnhlo. Maybe one of them can be our initial string encrypted? Changing 9 characters from i..p in the input flag to aabbccdd, causes the first two interesting strings to be the same but the first one changes to ba`h`agg.
Putting a memory breakpoint that that address (+0x82@VM) points us to the next opcodes: 0x7c, where the xor is being done the input. Each character has a different xor value but it’s relatively easy to get those: \x06\x06\x03\x02\x0B\x03\x05\x06. We can verify that using this key with the input aabbccdd gives the ba`h`agg in reverse. Using that trick on the input qZm~d\2Y and doing the necessary reversing gives us second part of the flag: `
d = "qZm~d\\2Y"
''.join([chr(ord(x)^y) for x,y in zip(d[::-1],key)])
So the current flag input would be: bi0s{abcdefgh_4_fun_wqrstuvwxde_s7uff}.
Following the flow, for the next part of the flag qrstuvwx we break in the handler for the opcode 0x96 that converts two characters of the flag into 16-bit value -> qr to 0x7172, after the conversion it’s being stored at (+0c@VM). Later we end up in handler for 0xa2 opcode where we are xoring this 16-bit value with another 16-bit value - 0x4c5c. Putting a breakpoint on the xor and iterating we can get that in each iteration we xor with the same value 0x4c53 but the input is different. Top byte is the lower 8-bit from the previous round, and the low byte is the next byte of the input.
This looks complex, but in fact what it means is that the apart from the first and last characters, the rest is being xor-ed by 0x4c^0x53 = 0x1f. The first one is xor-ed just by 0x43 and the last only by 0x5C.

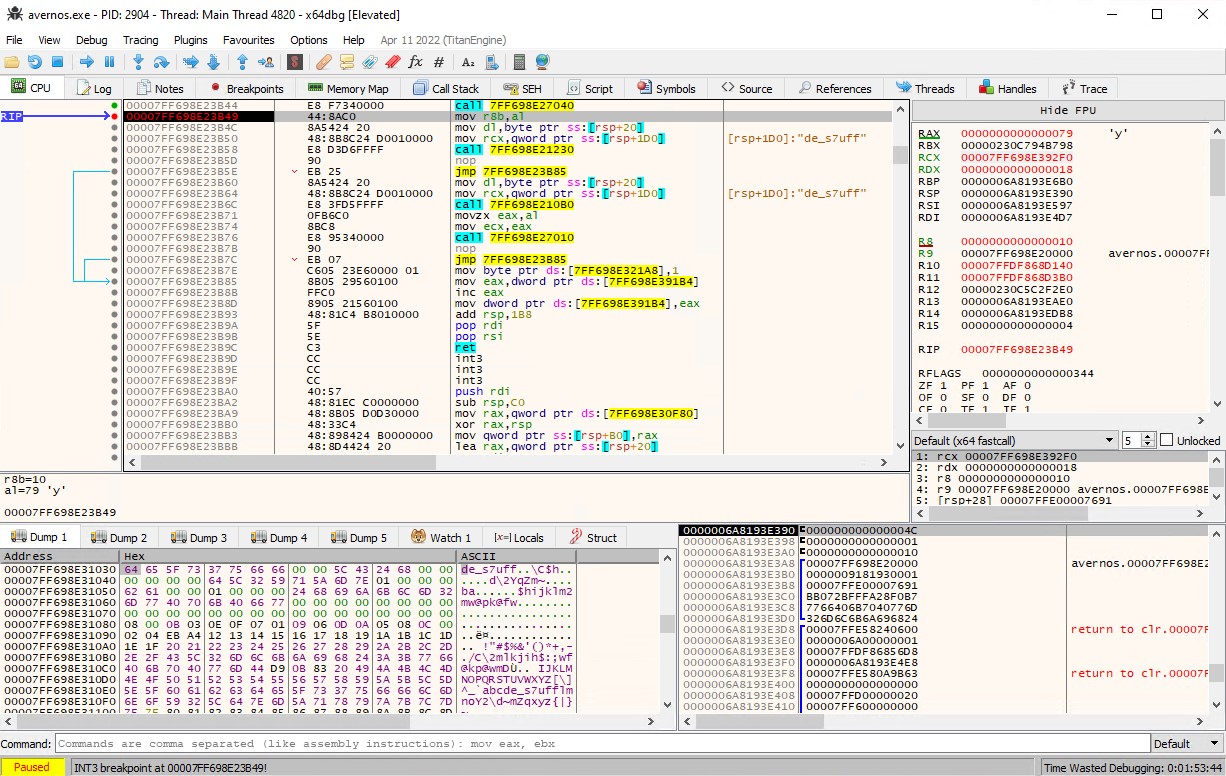

And after we are done, yet another cryptic string appears that could be a part of the flag: wf@kp@wm.
d = 'wf@kp@wm'
key = [0x43,0x1f,0x1f,0x1f,0x1f,0x1f,0x1f,0x5C]
''.join([chr(ord(x)^y) for x,y in zip(d, key)])
Running this gives us another part of the flag: 4y_to_h1. So our current flag is: bi0s{abcdefgh_4_fun_w4y_to_h1de_s7uff}.
Getting the final part
So we have almost the entire flag, but we’re missing the first 8 characters. During the CTF, I noticed that we were computing a checksum-like value based on 2-character inputs and comparing it to predefined constants. It resembled a CRC-like calculation.

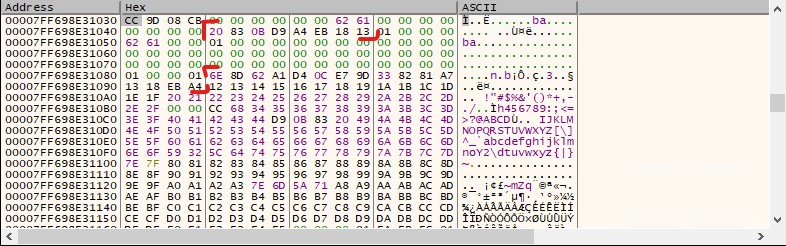

Some interesting values inside VM memory
The process starts with an initial value of 0xd90b8320, and depending on certain conditions, either xor or shr is used to compute a new value. But just knowing that wasn’t enough - I couldn’t figure out the exact logic or when xor or shr was applied.
Not wanting to abandon this challenge, I decided to take a brute-force approach. Brute-forcing all 8 characters directly and checking the binary’s output would have taken too long - even with a reduced character set. So I needed a better strategy.
Instead, I ran the binary with all possible 2-character inputs (which is manageable), attached to the process mid-execution, and dumped the VM’s memory to a file. The idea was to scan these logs for the output of the computation and look for known target values. Specifically, I hoped to find one or more of the following: [0xcc9d08cb, 0xf6a29795, 0x5c12d754, 0x21563cf9].
The script that ran the binary with all combinations looked like this:
import subprocess
import string
import itertools
alpha = string.ascii_lowercase+string.ascii_uppercase+string.digits+'_'
exe_path = "avernos.exe"
stdin_prefix = "bi0s{"
stdin_suffix= "_4_fun_w4y_to_h1de_s7uff}\n"
i = 0
for c1,c2 in itertools.product(alpha, repeat=2):
i += 1
stdin_data = stdin_prefix + (c1+c2)*4 + stdin_suffix
if i % 1000 == 0:
print(stdin_data)
result = subprocess.run([exe_path], input=stdin_data, capture_output=True, text=True)
Nothing too fancy here - we generate all 2-character combinations from our alphabet, repeat them 4 times to fill the 8-character gap, and send them as input to the binary.
On the other side, we have the memory reading script:
import ctypes
import psutil
import ctypes.wintypes as wintypes
import subprocess
import time
import sys
import logging
import logging
import threading
import queue
import time
ADDRESS_TO_READ = 0x00007FF74ADE1030
SIZE = 255
PROCESS_VM_READ = 0x0010
PROCESS_QUERY_INFORMATION = 0x0400
LOG_FILE = "process_monitor.log"
logging.basicConfig(
filename=LOG_FILE,
level=logging.INFO,
format='%(asctime)s %(levelname)s %(message)s',
datefmt='%Y-%m-%d %H:%M:%S'
)
kernel32 = ctypes.WinDLL('kernel32', use_last_error=True)
OpenProcess = kernel32.OpenProcess
OpenProcess.argtypes = [wintypes.DWORD, wintypes.BOOL, wintypes.DWORD]
OpenProcess.restype = wintypes.HANDLE
ReadProcessMemory = kernel32.ReadProcessMemory
ReadProcessMemory.argtypes = [wintypes.HANDLE, wintypes.LPCVOID, wintypes.LPVOID, ctypes.c_size_t, ctypes.POINTER(ctypes.c_size_t)]
ReadProcessMemory.restype = wintypes.BOOL
CloseHandle = kernel32.CloseHandle
CloseHandle.argtypes = [wintypes.HANDLE]
CloseHandle.restype = wintypes.BOOL
def find_process_by_name(name):
for proc in psutil.process_iter(['name', 'pid']):
if proc.info['name'] and proc.info['name'].lower() == name.lower():
return proc.info['pid']
return None
while True:
pid = find_process_by_name("avernos.exe")
if pid:
h_process = OpenProcess(PROCESS_VM_READ | PROCESS_QUERY_INFORMATION, False, pid)
if not h_process:
continue
try:
buffer = (ctypes.c_char * SIZE)()
bytesRead = ctypes.c_size_t(0)
ReadProcessMemory(h_process, ctypes.c_void_p(ADDRESS_TO_READ), buffer, SIZE, ctypes.byref(bytesRead))
if not all([c == '0' for c in buffer.raw[:bytesRead.value].hex()]):
logging.info(f"{pid}: {buffer.raw[:bytesRead.value].hex()}")
except Exception as e:
print(f"Error reading mem: {e}")
This script continuously scans for the avernos.exe process. Once found, it reads memory at a known address where the VM state is stored. If the buffer isn’t all zeroes, we log the result.
A snippet of the resulting log looks like:
2025-06-11 22:53:37 INFO 5184: 64655f733775666600005c436d77000000000000645c3259715a6d7e01000000616100000100000066667537735f656466667537735f656400000000000000000000000000000000000000000000000001000b030e0f070109060d0a05080c000204044112131415161718191a1b1c1d1e1f202122232425262728292a2b2c2d2e2f435c7766406b7040776d3a3b7766406b7040776d44d964655f73377566664e4f505152535455565758595a5b5c5d5e5f6061626364655f73377566666c6d6e6f59325c647e6d5a7178797a7b7c7d7e7f808182838485868788898a8b8c8d8e8f909192939495969798999a9b9c9d9e9fa0a1a2a37e6d5a71a8a9aaabac
2025-06-11 22:53:37 INFO 5184: 64655f733775666600005c436d77000000000000645c3259715a6d7e01000000616100000100000066667537735f656466667537735f656400000000000000000000000000000000000000000000000001000b030e0f070109060d0a05080c000204044112131415161718191a1b1c1d1e1f202122232425262728292a2b2c2d2e2f435c7766406b7040776d3a3b7766406b7040776d44d964655f73377566664e4f505152535455565758595a5b5c5d5e5f6061626364655f73377566666c6d6e6f59325c647e6d5a7178797a7b7c7d7e7f808182838485868788898a8b8c8d8e8f909192939495969798999a9b9c9d9e9fa0a1a2a37e6d5a71a8a9aaabac
2025-06-11 22:53:37 INFO 5184: 64655f733775666600005c436d77000000000000645c3259715a6d7e01000000616100000100000066667537735f656466667537735f656400000000000000000000000000000000000000000000000001000b030e0f070109060d0a05080c000204044112131415161718191a1b1c1d1e1f202122232425262728292a2b2c2d2e2f435c7766406b7040776d3a3b7766406b7040776d44d964655f73377566664e4f505152535455565758595a5b5c5d5e5f6061626364655f73377566666c6d6e6f59325c647e6d5a7178797a7b7c7d7e7f808182838485868788898a8b8c8d8e8f909192939495969798999a9b9c9d9e9fa0a1a2a37e6d5a71a8a9aaabac
Once all cases had been processed, we scanned the logs for our known constants. For each match, we looked at offset +0x0a from the log entry to extract the corresponding 2 characters. Here’s what we found:
cc9d08cb-m1f6a29795-x_5c12d754-m021563cf9-d3
Not the cleanest approach, but it was effective..
Final flag
Combining the first 8 bytes that we’ve just extracted and the rest gives us the full flag: bi0s{m1x_m0d3_4_fun_w4y_to_h1de_s7uff}. Solved!
Conclusion
The challenge was a hybrid .NET/native setup with a custom virtual machine hidden in the payload. It required both static and dynamic analysis to fully reverse. The key breakthrough came from observing the VM’s runtime behavior using x64dbg and identifying how input characters were processed.
A very fun and instructive challenge. Props to the bi0s team!
Happy reversing!
